POWER OUTLET SWITCHED HORIZONTAL STARD SERIES SINGLE 10A 250V WHITE ELECTRIC
Lear & Smith Part:
CLI15WE
Mfr Number:
15-WE
Barcode:
9311554033941
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
Supplier Packages :
Package options may not always be available
Package Options
Number of items
1 Box
100 EAC
1 Carton
10 EAC
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details

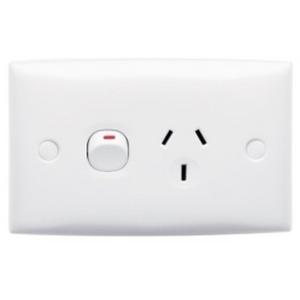

POWER OUTLET SWITCHED HORIZONTAL STARD SERIES SINGLE 10A 250V WHITE ELECTRIC
Standard Single Switched Socket. Plate size 115mm x 73mm, Mounting Centres 84mm. Base projection 13mm. Terminals accommodate 4x2.5mm sq. cables. 250V 10A ac only, Single Pole
Standard Single Switched Socket. Plate size 115mm x 73mm, Mounting Centres 84mm. Base projection 13mm. Terminals accommodate 4x2.5mm sq. cables. 250V 10A ac only, Single Pole
Not the product you were looking for? Check out other items in the GPO
Technical Specifications
Technical Specifications
Does this product not have all the features you are looking for?
Please don't hesitate to conduct a search for other products with similar technical specifications.
To find similar products, please select the desired specifications from the white boxes below.
To help with your selection, try selecting the Select All button below then deselect any unwanted specification.
Please select at least 1 attribute to search.
GPO |
|
| Number of socket outlets |
1
|
|---|---|
| Mounting direction |
Horizontal
|
| Type of fastening |
Mounting with screw
|
| Mounting method |
Flush-mounted
|
| Material |
Plastic
|
| Material quality |
Thermoplastic
|
| Surface protection |
Untreated
|
| Colour |
White
|
| Transparent |
No
|
| Nominal voltage |
250 V
|
| Rated current |
10 A
|
| Fault current protection |
No
|
| With miniature fuse |
No
|
|---|---|
| Number of active contacts (flat) |
3
|
| Device width |
73 mm
|
| Device height |
115 mm
|
| Device depth |
14 mm
|
| Model |
Other
|
| Number of socket outlets switchable |
1
|
| Number of poles (total) |
1
|
| Imprint/indication |
Without imprint
|
| With built-in USB power supply |
No
|
| Lockable |
No
|
| With on/off switch |
Yes
|
